Why Testonic Vertical Probe Card?
Based on extensive R&D expertise with global semiconductor leaders, Testonic delivers customized MEMS, Straight, and Cobra test solutions. We master high-density, high-difficulty designs while leveraging advanced SI/PI simulation to preemptively eliminate risks and maximize customer value. We are a small but mighty 'Hidden Champion' dedicated to your success.

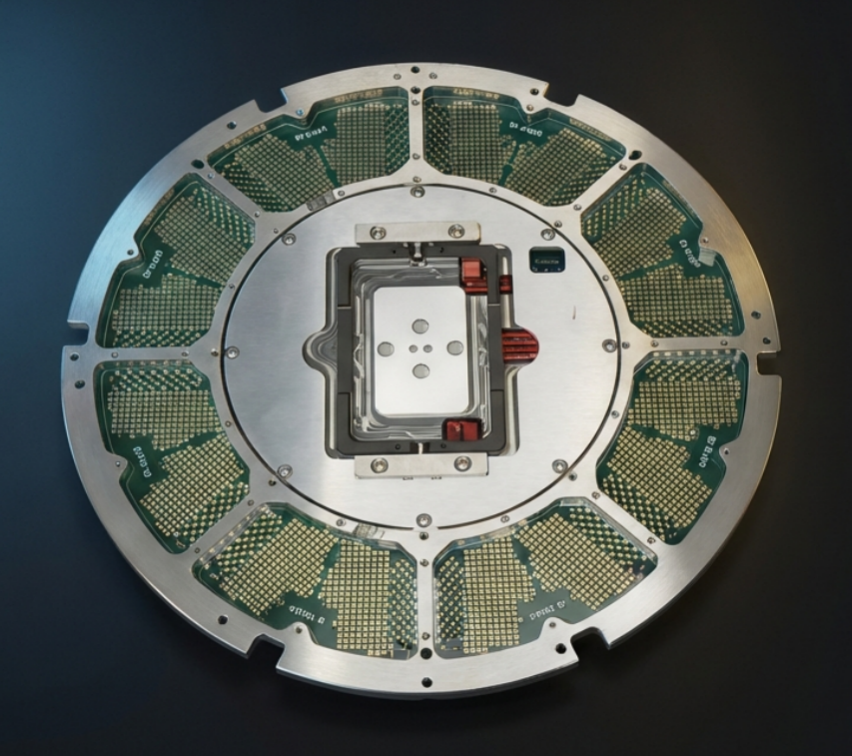

Advanced Vertical Technology
Next-Gen Semiconductor Test Solutions
HBM (High Bandwidth Memory) Test
Application Processor Test
Logic IC Fine Pitch Test
Low Leakage Test
Mobility Semiconductor Test
Interface Solutions

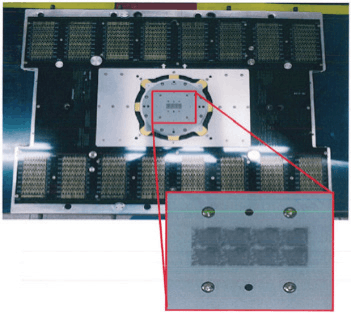

Directdocking
Pin Count10,000~30,000
DUT2~8
Pitch60㎛
PCBV93K, T2000
MLC/MLO Size101*101mm
→

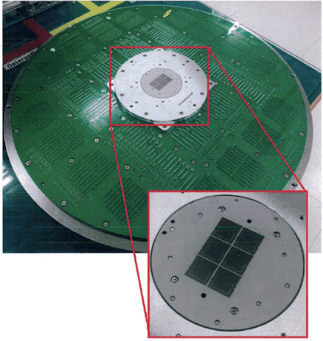

Flex 11
Pin Count10,000~30,000
DUT1~8
Pitch60㎛
PCBFlex
MLC/MLO Size60*60mm
→

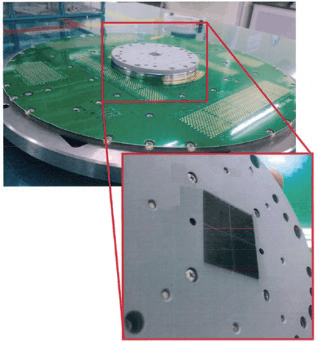

Ultra Flex 18
Pin Count50,000↑
DUT6
Pitch60㎛
PCBUltra Flex
MLC/MLO Size101*101mm
→
High Precision Technology
Advanced semiconductor testing solutions with micro-scale precision

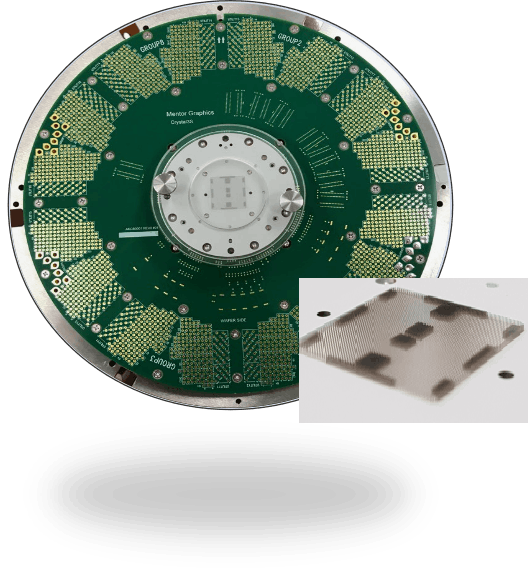

Fine Pitch Vertical

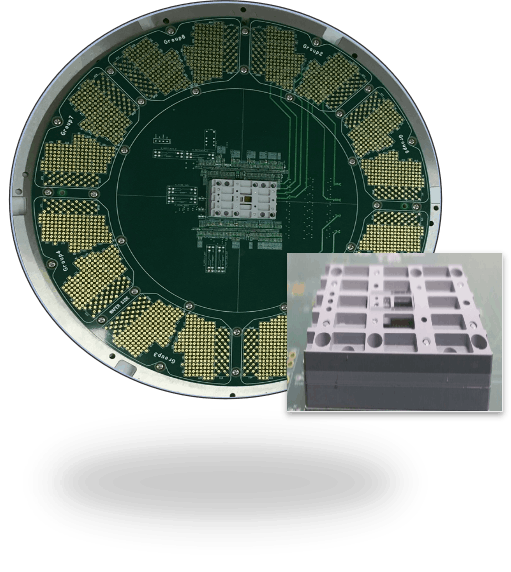

Hybrid Vertical
< 60μm
pitch
Achievable down to 40μm
1.3g/f mil
probe Force
< 1M T/D
life Time
-40 ~ 125°C
op Temp
≥ 600mA
max Current
> 1GHz
speed
High Performance & Stability

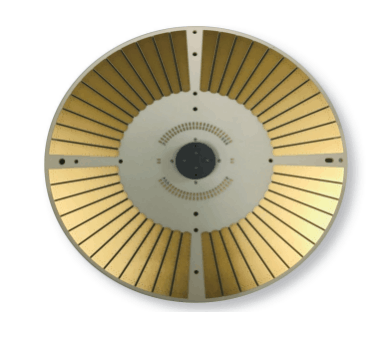

Low Leakage Vertical
Pitch
＜ 60㎛
40μm Pitch achievable
Probe Force
1.3g/f mil
Life Time
＜1M T/D
Operation Temp
-40 ~ 125℃
Max Current
≥400㎃
Leakage
＜300fA

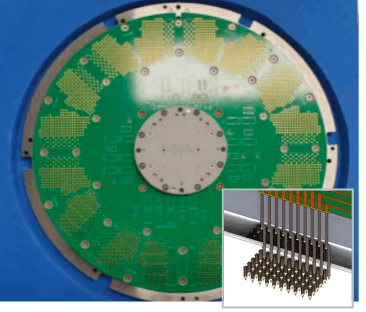

MEMS Vertical
Pitch
＜ 40㎛
35μm Pitch achievable
Probe Force
0.6g/f mil
Life Time
＜1M T/D
Operation Temp
-40 ~ 125℃
Max Current
≥400㎃
Leakage
＜300GHz
The Core of Signal Integrity: Space Transformer
Application of MLC/MLO Technology for MLWST/VLWST
MLC
Multi-layer Ceramic
Min Pitch (μm)Semi: 50, Full: 80
Max Pins50K
Frequency> 15GHz
PriceHigh
Delivery9w
Working Day5w

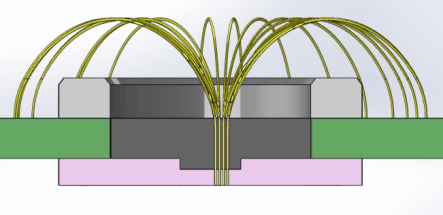

MLWST
M-Line Wire Space Transformer
Min Pitch (μm)50
Max Pins8K
Frequency1.2GHz
PriceLow
Delivery6w
Working Day2w
VLWST
V-Line Wire Space Transformer
Min Pitch (μm)35
Max Pins5K
Frequency3.5GHz
PriceLow
Delivery6w
Working Day2w
